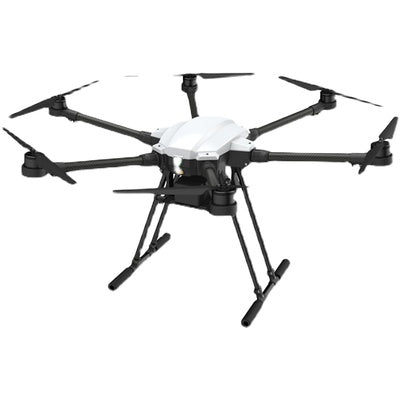

X6100
X6 SERIES LIGHT LOAD FLYING PLATFORM
X6120
X6 SERIES LIGHT LOAD FLYING PLATFORM
Modular Integrated Fuselage
The main body of the fuselage adopts a modular design, and the fuselage frame is integrally formed, with a simplified structure and convenient assembly
Separate Arm Disassembly
The arm adopts a separate disassembly design and ingeniously designed breakpoints to reduce damage to the parts of the bomber and reduce maintenance costs
x6100 Umbrella Folding Design
The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage
x6120 Umbrella Folding Design
The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage
Quick Release Battery Track
The battery guide rail cooperates with the spring positioning knob to realize the tool-free replacement of the battery compartment, making the battery installation and replacement more convenient and quick
Full Waterproof Body
The design of the whole machine is dustproof and waterproof, and the protection grade is IP65, which can fly normally in the rain
Scalable Mounting Platform
The expandable mounting platform can be adapted to equipment used in different industries, such as carrying PTZ, pod, megaphone, throwing device, etc
Product Details
-
BUILT IN GPS
-
POWER BOARD
-
DISTRIBUTION BOARD
-
EXPAND THE INTERFACE
Optional E5 Motor SET
X6100 can be equipped with E5 special MOTOR set, with 18-inch folding propeller,Higher efficiency, more stable performance, overall waterproofing
Performance Parameter Table
Product Parameters
X6100
Wheelbase: 1000mm
Rack weight: 2.75kg
Empty weight: 4.85kg
Full load weight: 12kg
Effective load: 3-5kg
Recommended motor: 4216/5008
Recommended ESC: 40A ESC
Recommended blade: 17-18inches
Recommended battery: 16-22Ah(6S)
X6120
Wheelbase: 1290mm
Rack weight: 3.18kg
Empty weight: 7.5kg
Full load weight: 18kg
Effective load: 4-6kg
Recommended motor: 6015/6215/X6
Recommended ESC: 60A ESC
Recommended blade: 22-24inches
Recommended battery: 16-22Ah(12S)
Multi-Purpose Expansion
-
Education And Training
-
Scientific Research Experiment
-
Industry Application
